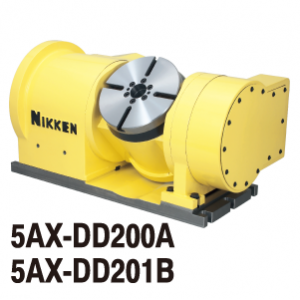

Direct Drive Tilting Rotary Table
The compact Two-axis Rotary Table model enables rapid acceleration/deceleration and high-speed rotation.
● Indexing at 90 degrees
Rotary axis indexing: Within 0.2 seconds
Tilting axis indexing: Within 0.3 seconds
● High-speed response, powerful clamping mechanism
Rotary axis: 150 Nm
Tilting axis: 500 Nm
Catalog Download

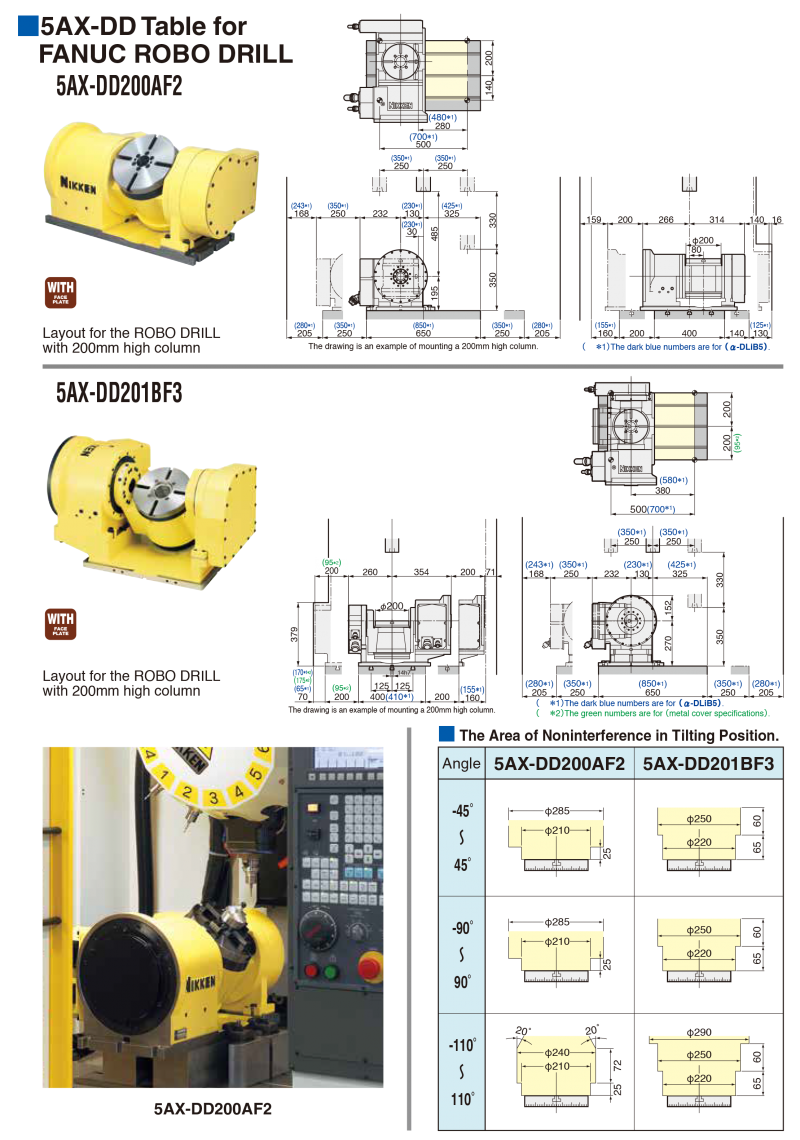

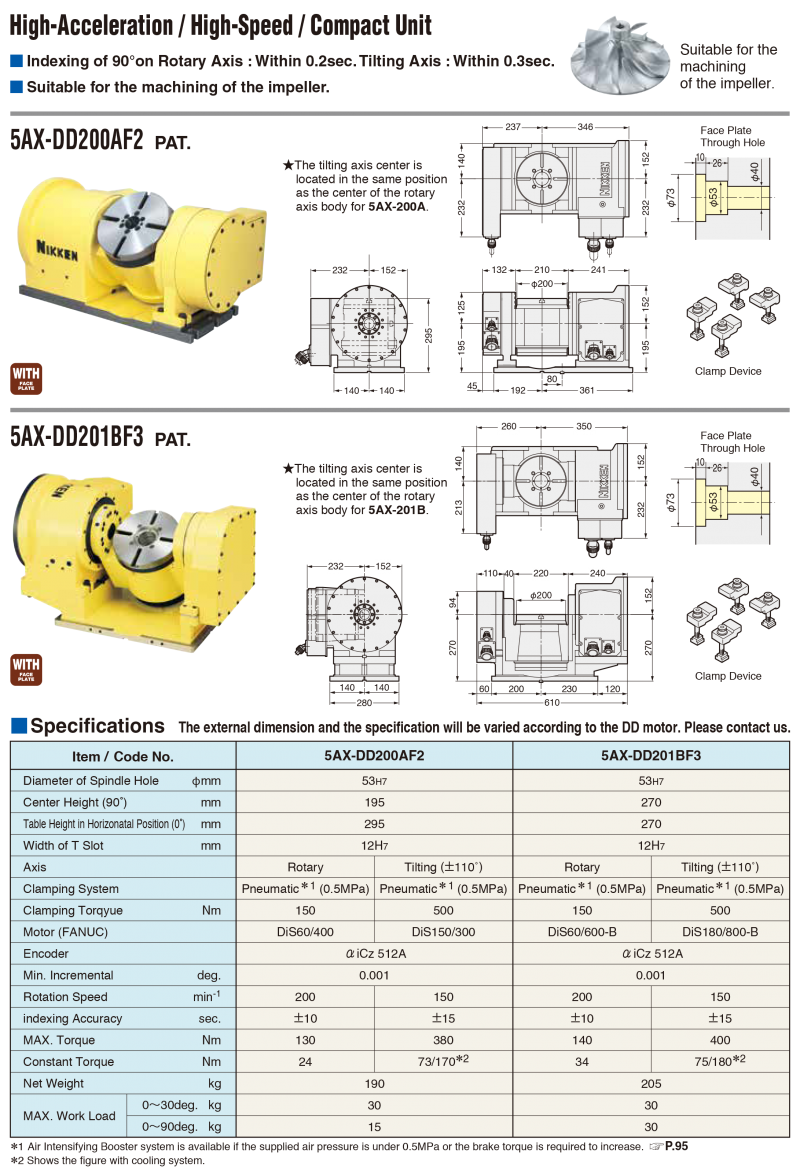

ROTARY TILTING TABLE with DD MOTOR Specifications・dimensional drawingDownload
×
