Standard Rotary Table


NIKKEN offers a wide-ranging lineup of Standard CNC Rotary Table Series to hold work pieces of diameters from φ 105 to φ 1600 The Standard Type is able to use vertically or horizontally depending on the application (except for some models).






CNC ROTARY TABLE E>STANDARD TYPE Catalog Download

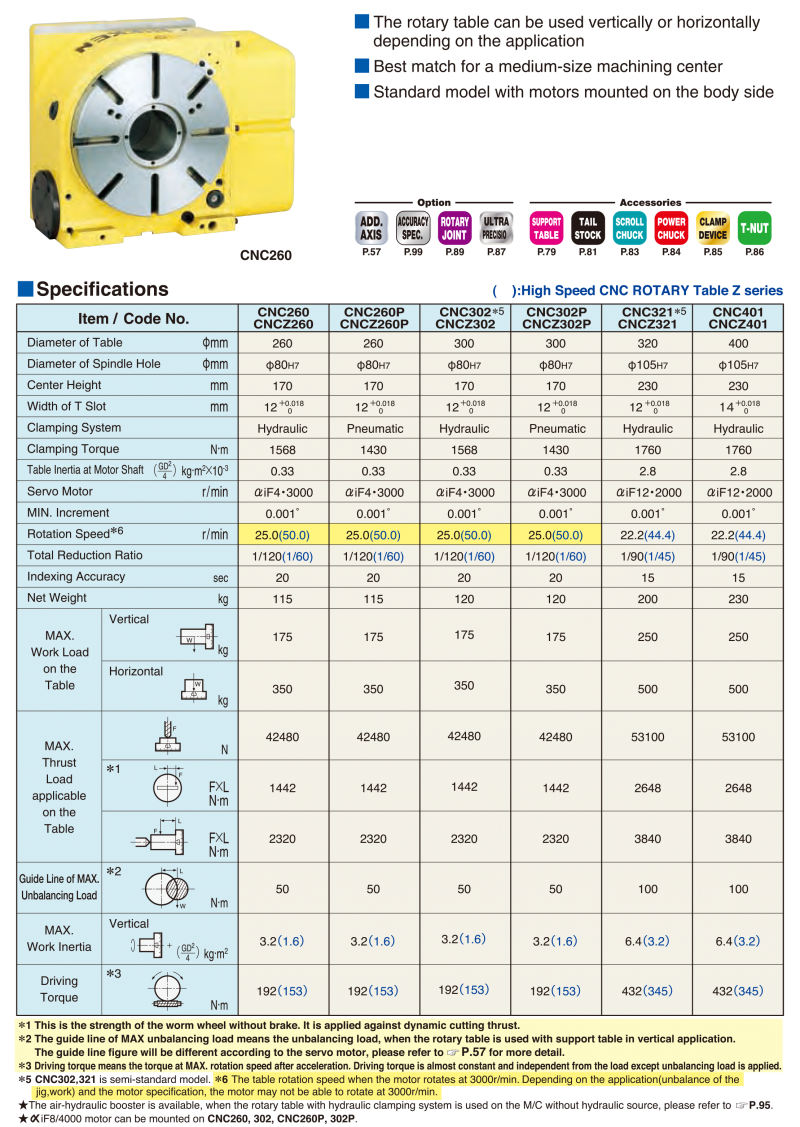

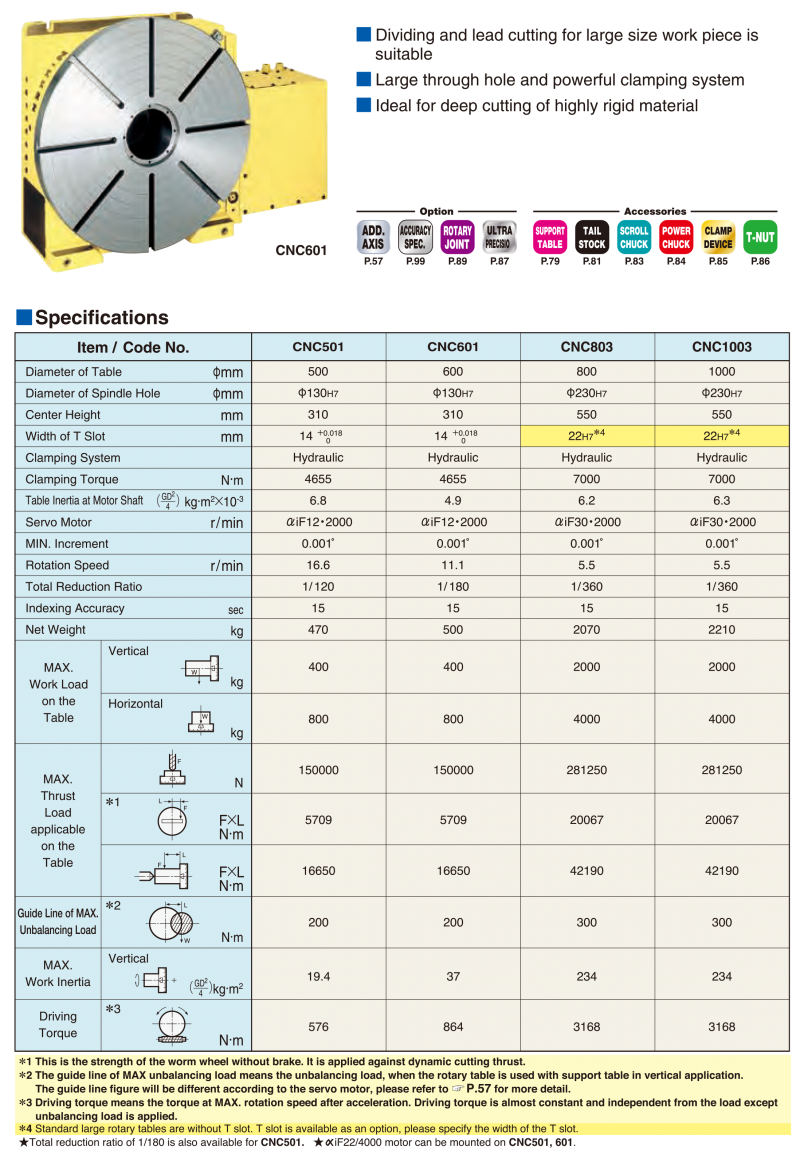

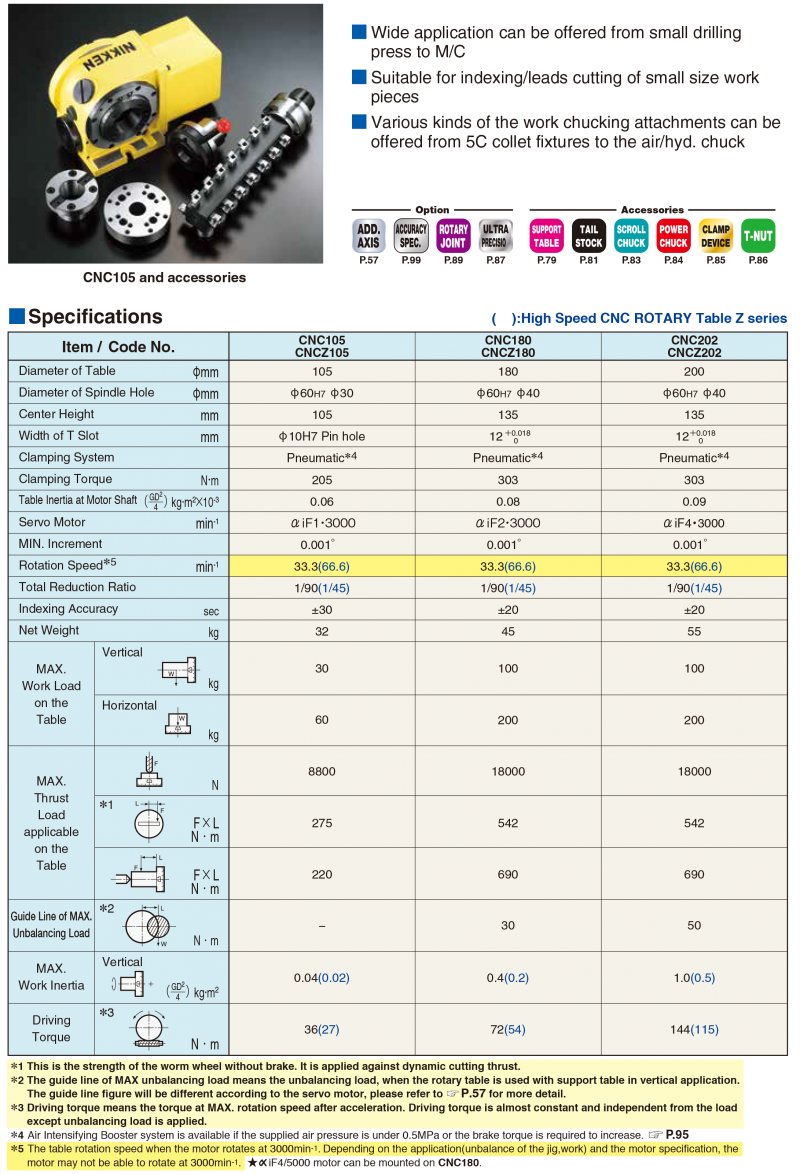

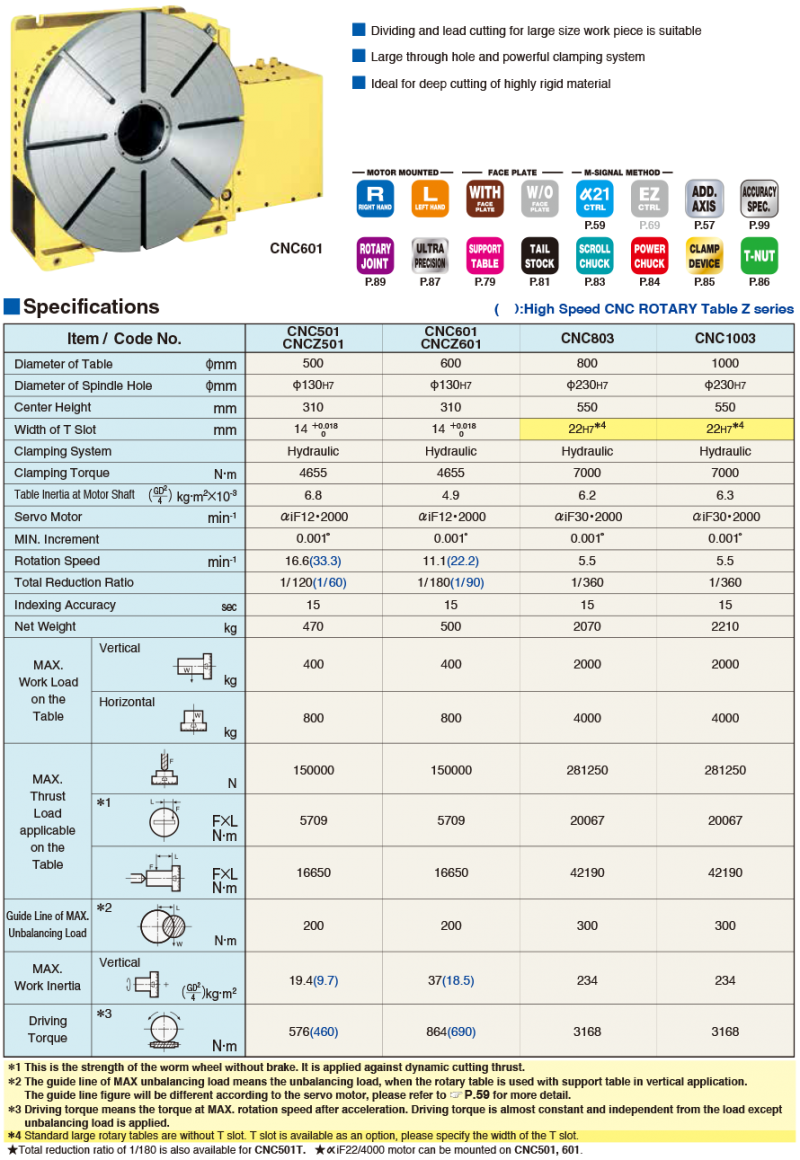

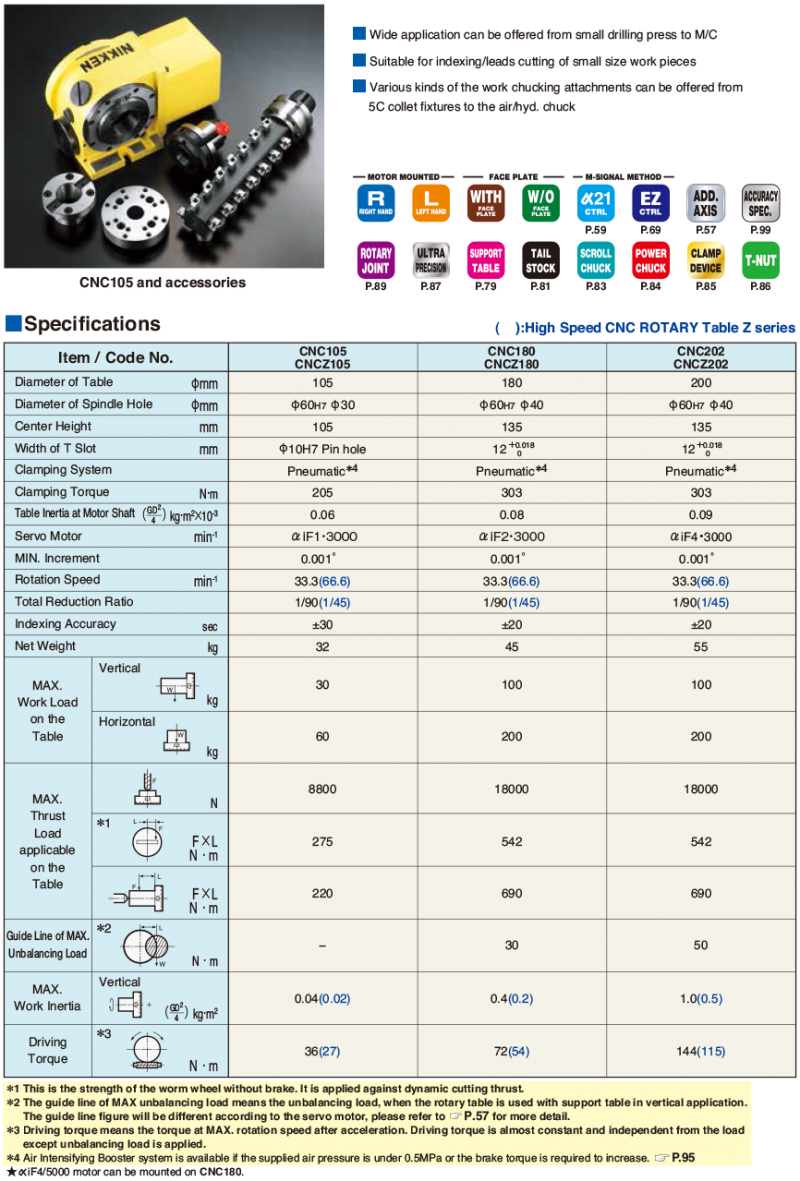

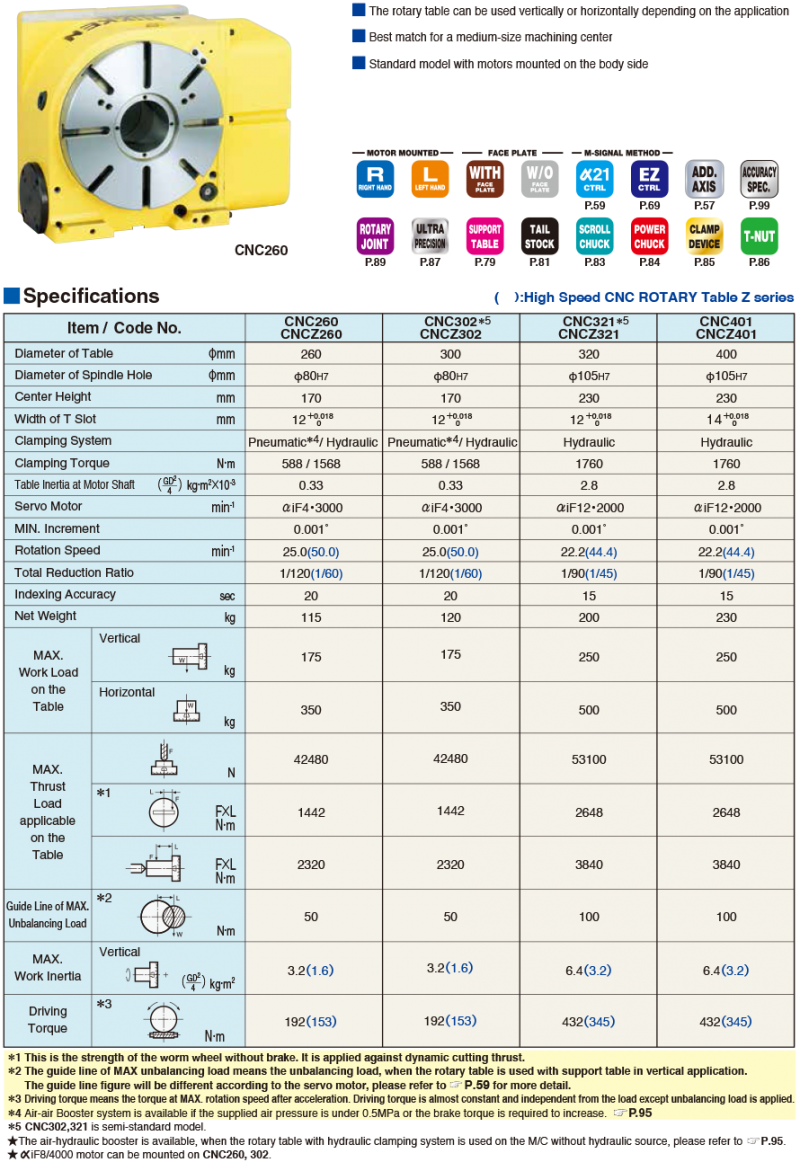

CNC ROTARY TABLE Specifications1Download CNC ROTARY TABLE dimensional drawing1Download CNC ROTARY TABLE Specifications2Download CNC ROTARY TABLE dimensional drawing2Download COMPACT CNC ROTARY TABLE SpecificationsDownload COMPACT CNC ROTARY TABLE dimensional drawingDownload
×
