Standard Tilting Rotary Table


The CNC Tilting Rotary Table model enables full automatic CNC control for tilting and rotating table in order to meet various application requirements .





TILTING ROTARY TABLE>STANDARD TYPE Catalog Download

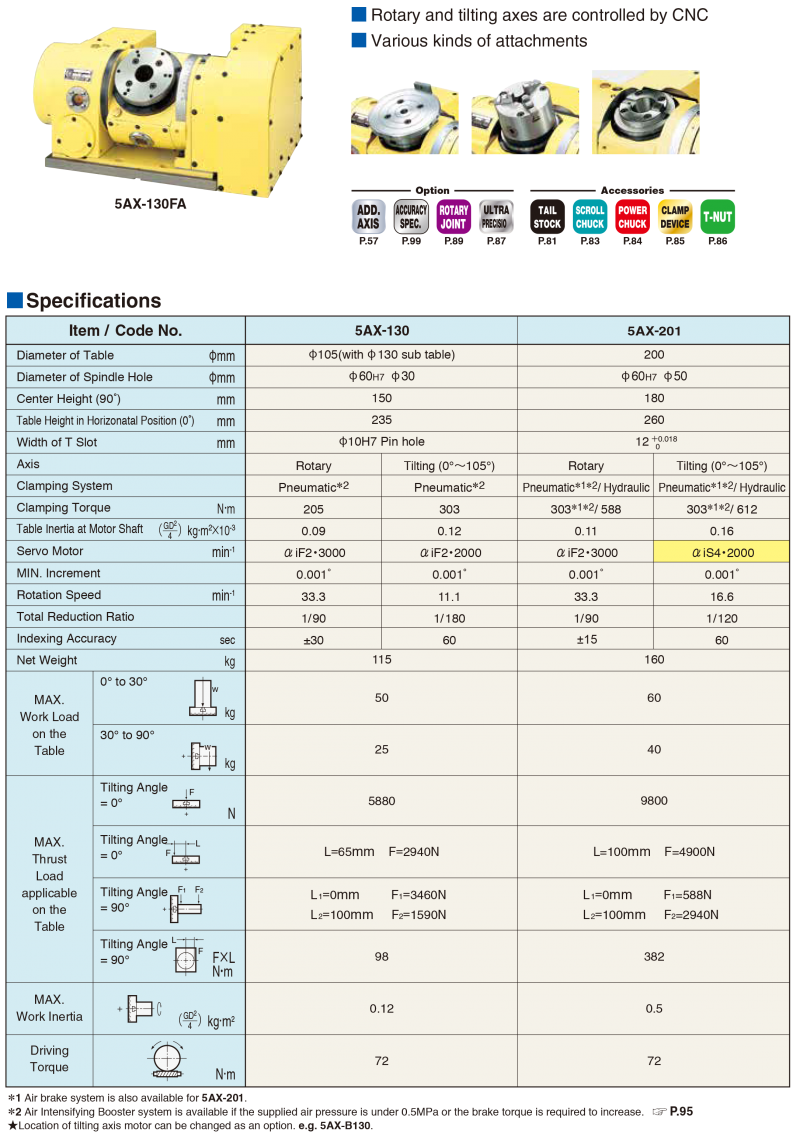

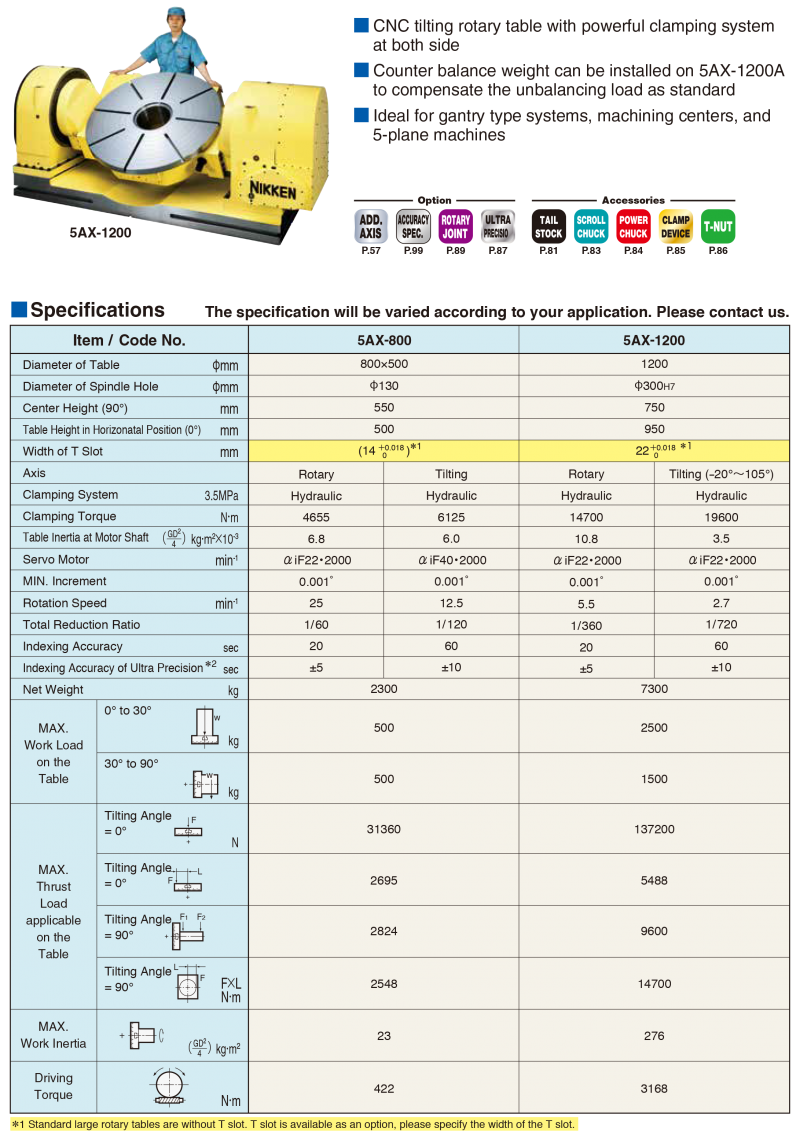

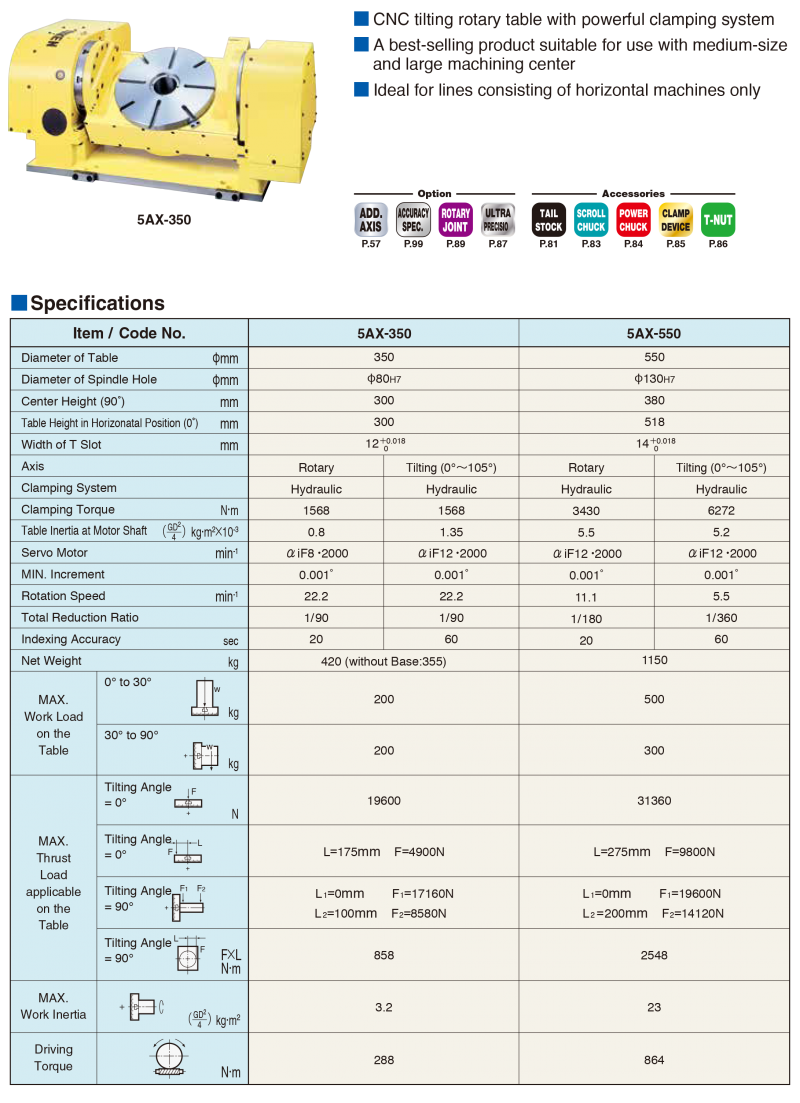

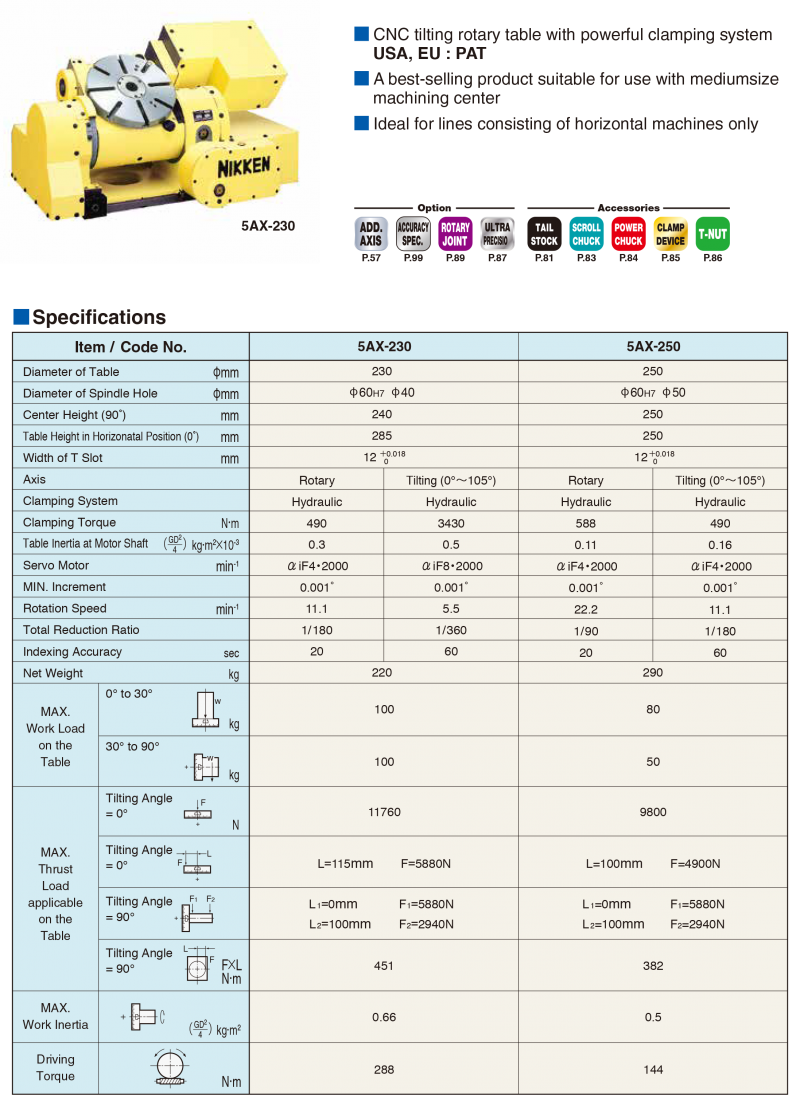

TILTING ROTARY TABLE Specifications1Download TILTING ROTARY TABLE dimensional drawing1Download TILTING ROTARY TABLE Specifications2Download TILTING ROTARY TABLE dimensional drawing2Download TILTING ROTARY TABLE Specifications3Download TILTING ROTARY TABLE dimensional drawing3Download LARGE TILTING ROTARY TABLE SpecificationsDownload LARGE TILTING ROTARY TABLE dimensional drawingDownload
×

https://www.nikken-kosakusho.co.jp/en/movie/#movie11
