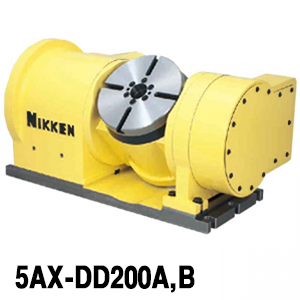

Direct Drive Tilting Rotary Table


The compact Two-axis Rotary Table model enables rapid acceleration/deceleration and high-speed rotation.

● Indexing at 90 degrees
  Rotary axis indexing: Within 0.2 seconds
  Tilting axis indexing:  Within 0.3 seconds
● High-speed response, powerful clamping mechanism
 Rotary axis: 150 Nm
 Tilting axis: 500 Nm

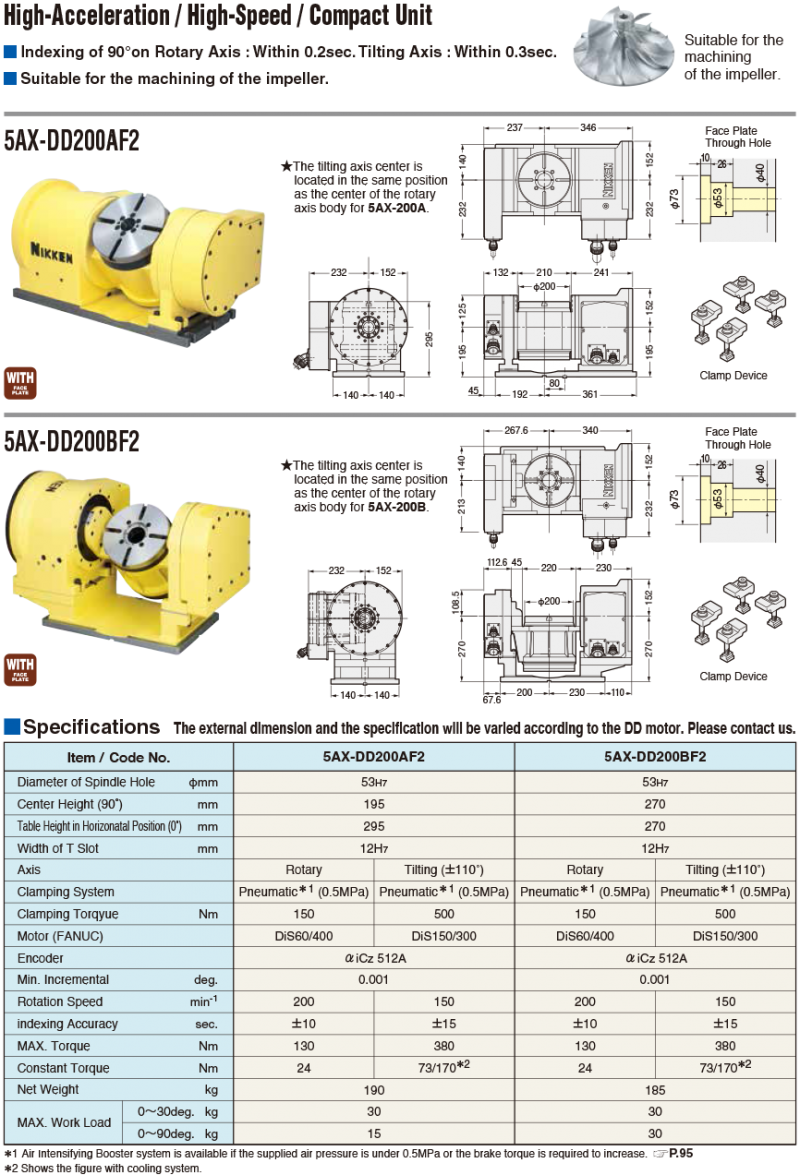

CNC Tilting Rotary Table with DD Motor Specification

Compact design, rapid acceleration/deceleration, and high-speed rotation



ROTARY TILTING TABLE with DD MOTOR Catalog Download

ROTARY TILTING TABLE with DD MOTOR Specifications• dimensional drawingDownload
×
