HMM


Carbide Mill Reamer (Morse Taper Shank)

 High-Speed, High-Efficiency Cutting
■Features
● The shape is almost identical to that of the Tough-Cut Skill Reamer, but the material of the Mill Reamer is extremely hard (K10 grade).
● The carbide construction increases cutting speed significantly to boost efficiency.
● Able to deliver increased productivity and quality, with excellent performance on casting, aluminum casting, and Meehanite materials.
● Positive rake teeth perform roughing for excellent pilot hole curvature correction.
● Available in two series: the HM series (for through holes), which performs milling, reaming finishing, and burnishing  simultaneously in a single unit, and the FM series (for stepped holes) which performs facing, milling, and reaming finishing simultaneously.

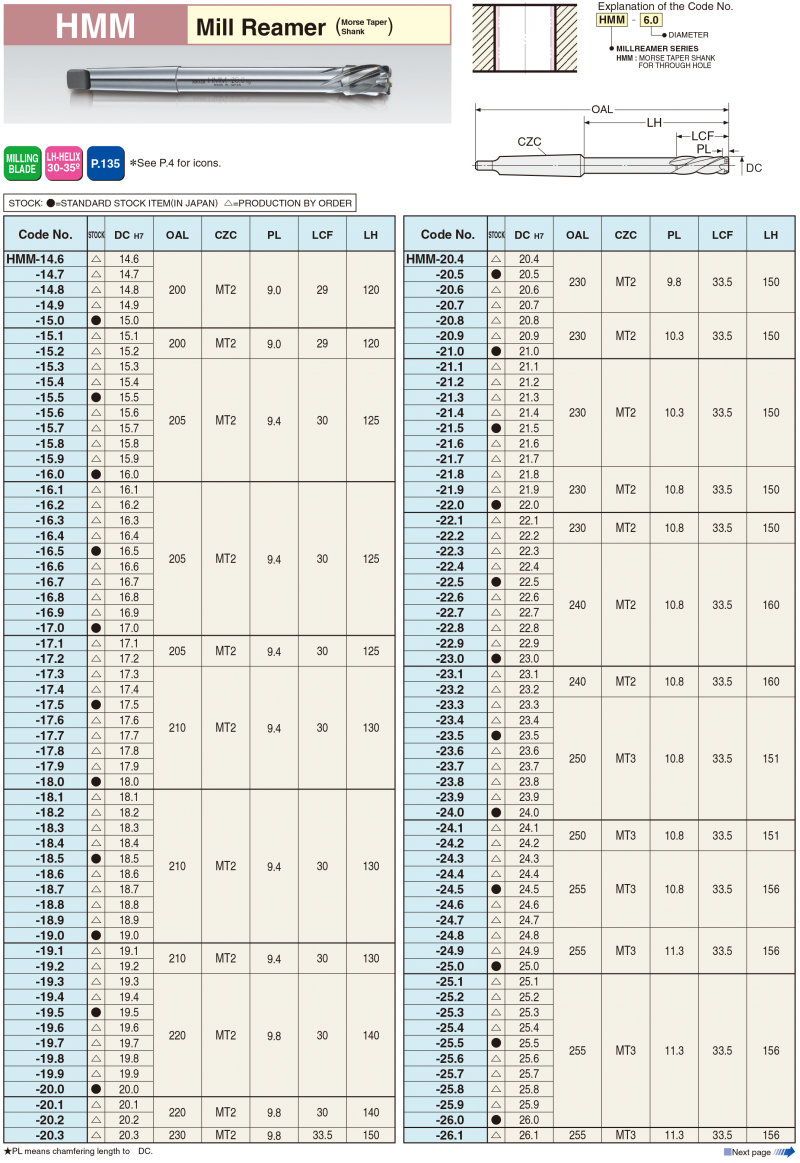

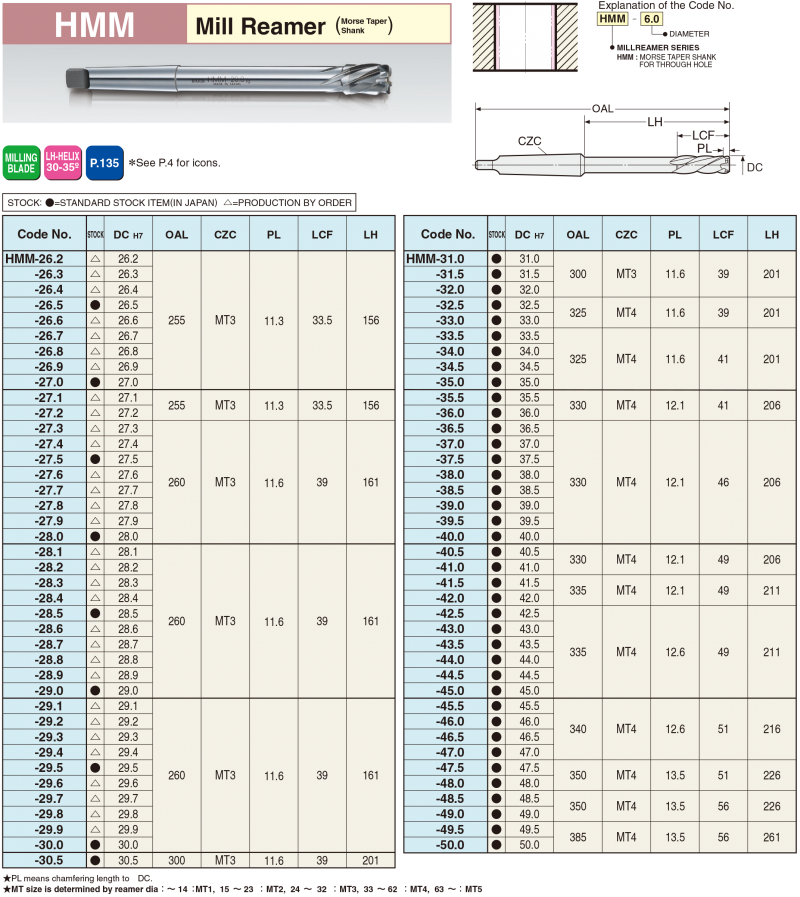

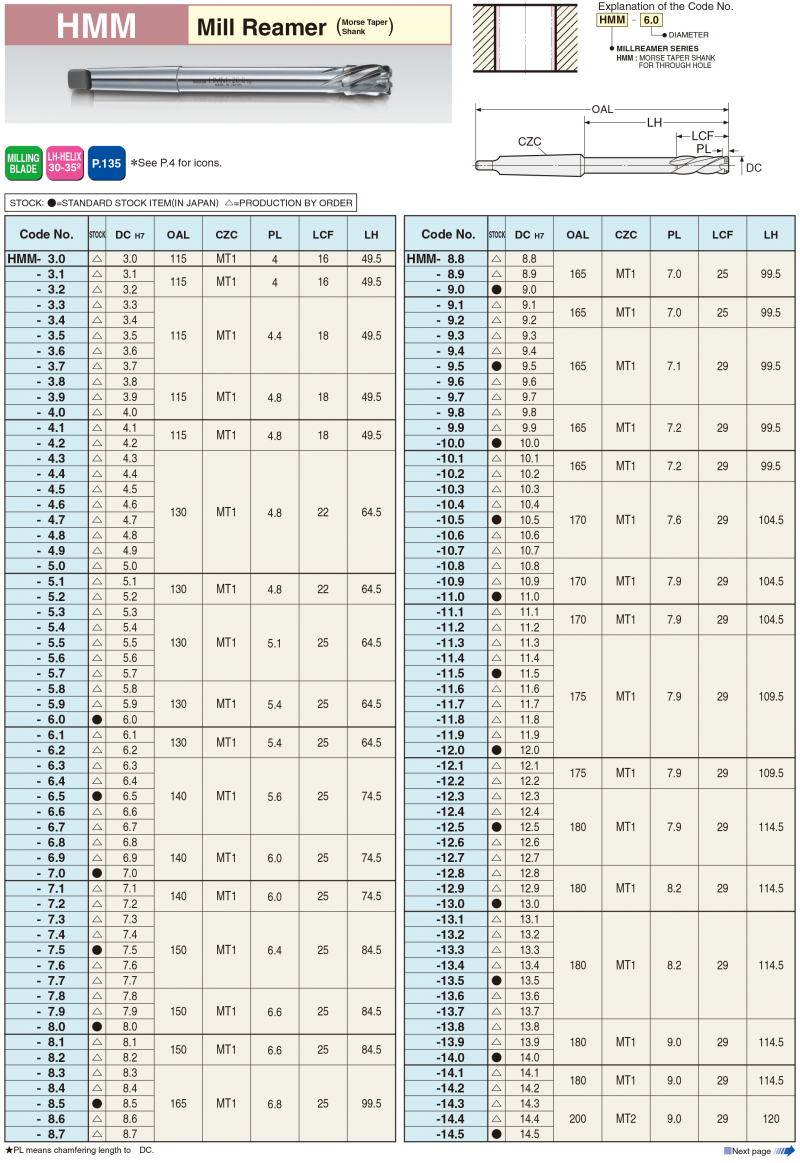

Carbide Mill Reamer (Morse Taper Shank) image



Catalog Download

Carbide Mill Reamer (Morse Taper Shank) PDFDownload
×
