SLIM CHUCK

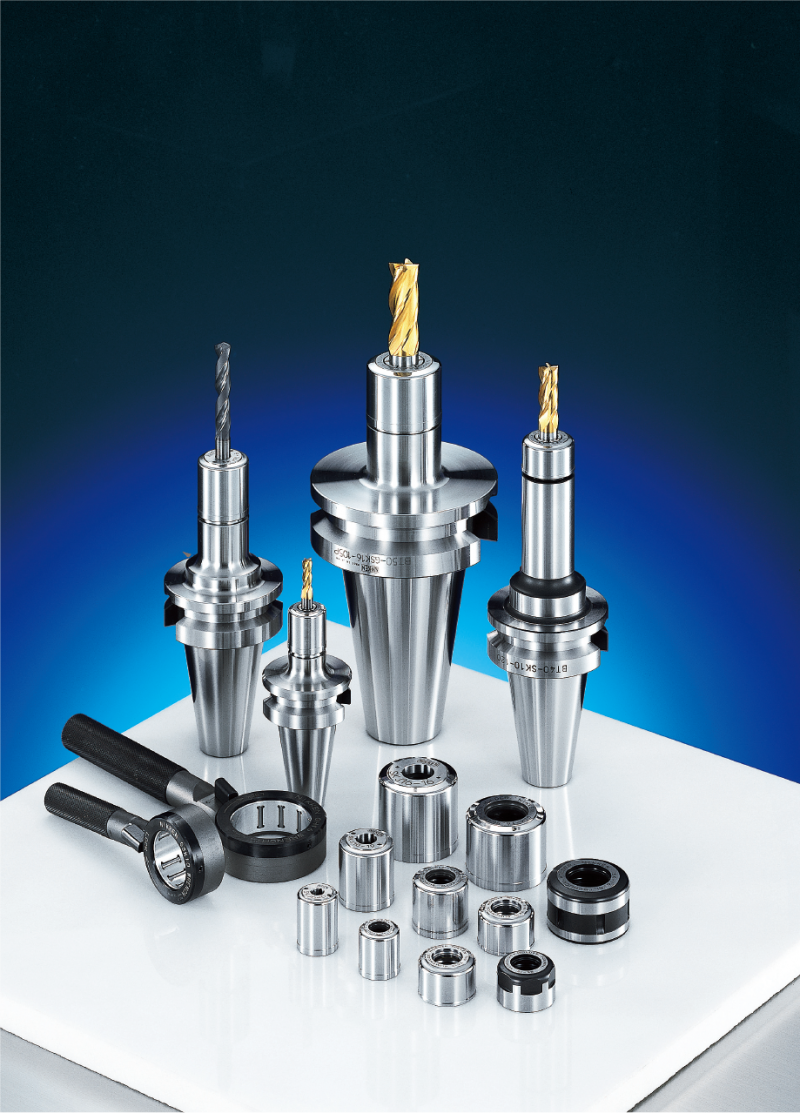

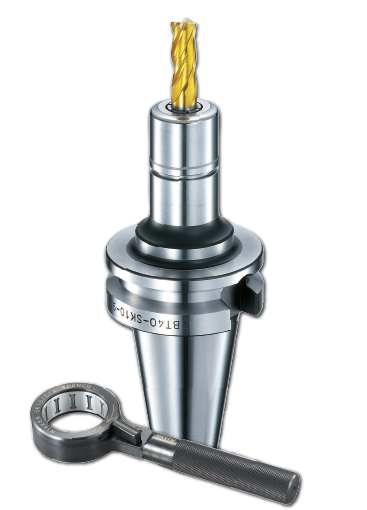

The slim body design Slim Chuck with built-in TiN bearing nut satisfies both of high run-out accuracy and chucking force.

The chucking range of the collet chuck is 0.7 mm to 25.4 mm.




The End-All Be-All Solution

Versatile

Slim Chuck can be used for all milling, drilling, reaming and rigid tapping applications.

Flexible

Slim Chuck covers sizes Φ0.7 to Φ25.4, L60 to L300, to respond to diversification and complication of applications.

Diverse

Slim Chuck has a wide variety to deal with taper of standards various in specification, BT Taper, BT 2-Face Contact Taper, HSK Taper, CAT Taper, Porygonal Taper, Nikken's unique BT 3LOCK Taper and NC5 Taper.

Simple and Rigid: Titanium Nitrided "TiN Bearing" Built-in Nikken's Unique Nuts

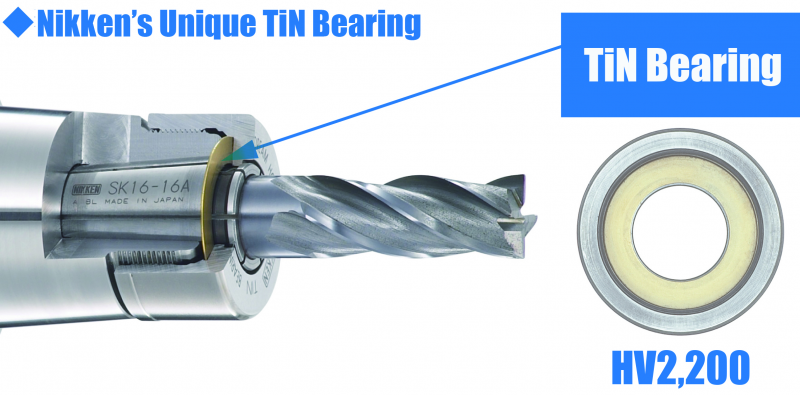

Nikken's unique TiN Bearing built-in nuts is more efficient than conventional ball bearing built-in nut. It has good sliding effect due to surface hardness of HV2,200. Extreme hard and smooth surface of the TiN Bearing allows for more thrust load on the collet while preventing additional runout associated with collet twisting and narrow body design accesses tight spots. It increase cutting performance and tool life durability.

Twice More Clamping Force and Twice More Precision: Nikken's Unique Steep 8゜Taper Collets

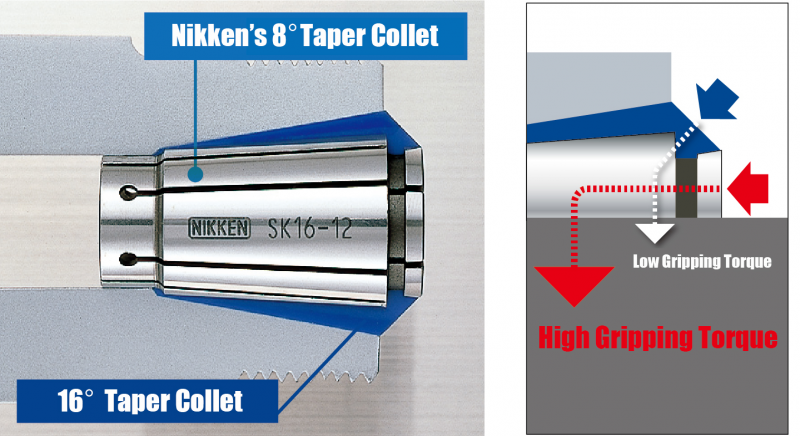

The smaller the taper angle is, the better concentricity is obtained. Nikken's steep 8° collet seats deeper in the body of the holder, providing twice more clamping force and twice more precision than traditional 16° ER collets. Collet edge is flush with front surface of nut maximizing gripping rigidity.

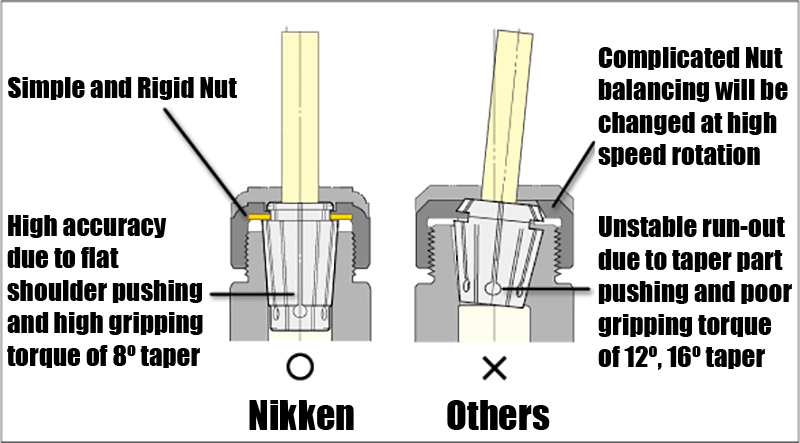

Slim Chuck vs Other Collet Chuck

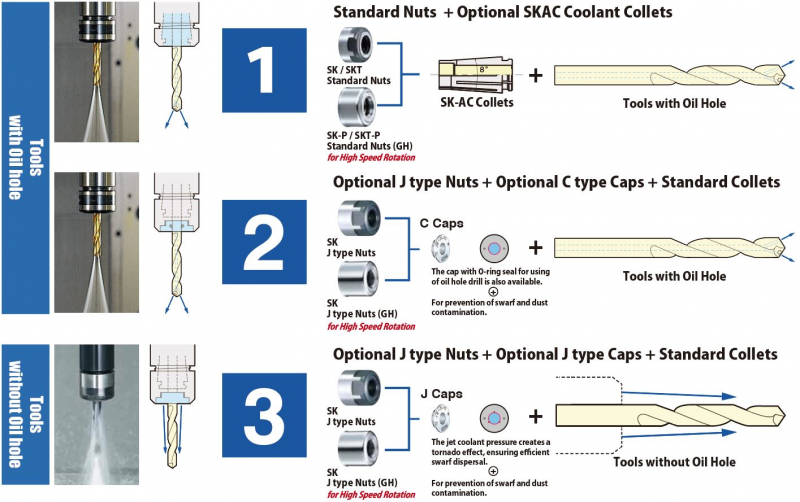

SK Coolant Solution


Ideal for Drill or Endmill (Optional) image

High-precision "P" class  collets for drill are available. They are guaranteed the Run-out accuracy within 3 micron at the nose (4D) from the chuck. And high-rigidity A type collets for endmill are also available.

Ideal for Small Diameter Tools (Standard) image

The new "Shining Edition" nuts for SK6 and SK10 are available. They are made for precision machining with small diameter tools.

Ideal for Ultra High Speed Rotation (Optional) image

The "High speed" models are available. They have symmetrical and simple external design without notch for ultra high speed rotation (MAX. 40,000 RPM / ballanced at G2.5). And GH wrenches are also available. They allow easy, safe and reliable handling.

To Enhance the Performance of Nikken's Products: SK Support Accessories

Set-up Time Reduction by

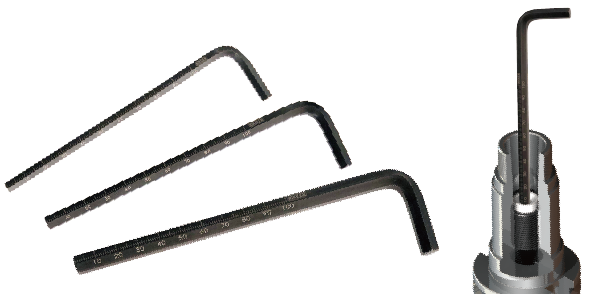

Wrench with Scale

SK Scale Wrench

Cutting tool length adjustment wrench for slim chuck

Set-up Time Reduction by

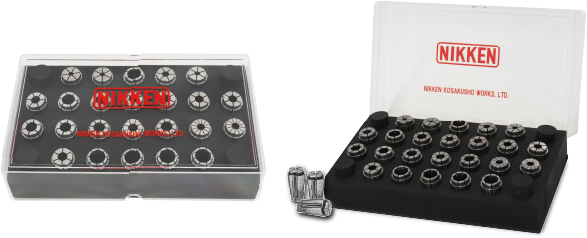

Convenient Case

SK Collet Case

Case for SK collets to maintain an organized work area and to facilitate replacement of collets
