3LOCK TOOLING SYSTEM (BT DOUBLE FACE CONTACT)

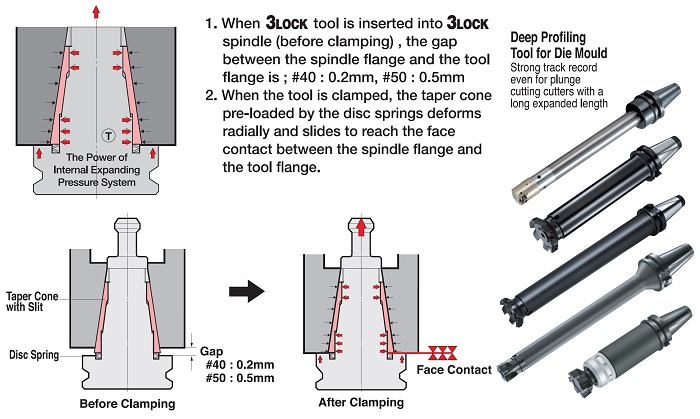

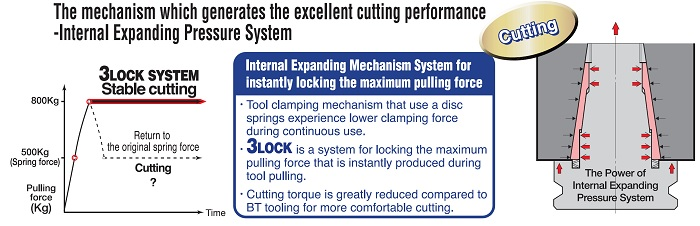

Full measures to prevent heat expansion and machine spindle taper expansion caused by high-speed rotation!

Extends the tool life three to five times.

“TOOL Revolution” for smooth cutting for both the Box Guide Machine and Linear Guide Machine.

No vibration, smooth cutting, reliable accuracy, and long life, regardless of type of materials. (aluminum, steel, or alloy steel)





3LOCK TOOLING SYSTEM Catalog Download

MILLING CHUCK(Standard)Download SLIM CHUCK(Standard)Download MINI-MINI CHUCK ADVANCED ALPHA(High Speed)Download
×
