BACK SPOT FACING ARBOR

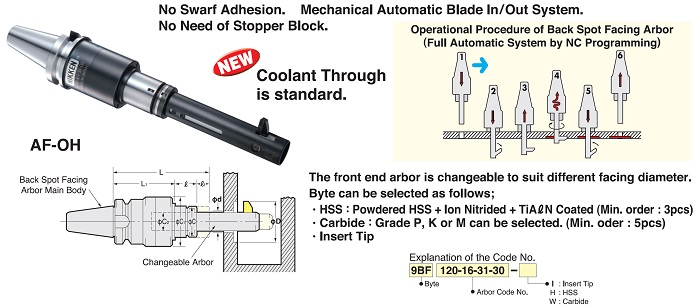

Nikken Automatic Back Spot-Facing Arbor

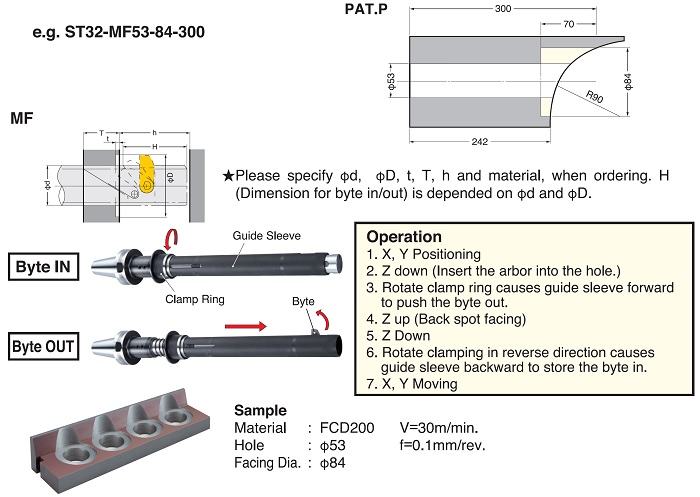

● Mechanical automatic blade in/out system with no swarf adhesion
● No need for stopper block
● Oil Holes are standard

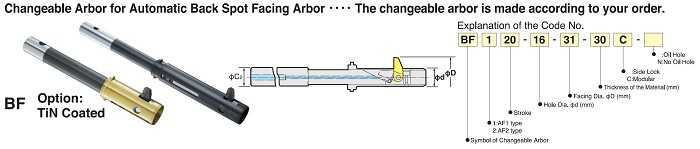

● The front-end arbor is changeable to suit different facing diameters.







BACK SPOT FACING ARBOR Catalog Download

BT TOOLING SYSTEM(AUTOMATIC)Download BT TOOLING SYSTEM(MANUAL)Download
×

https://www.nikken-kosakusho.co.jp/en/movie/#movie07
